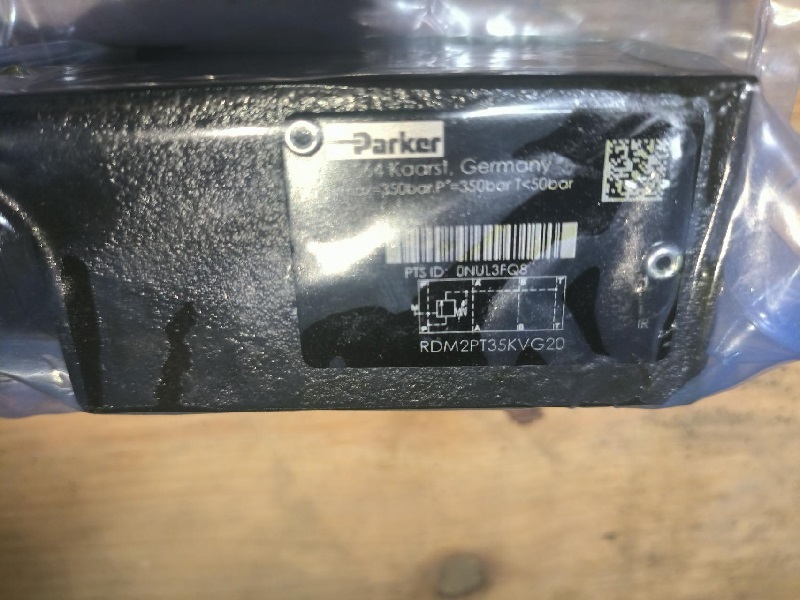

Parker RDM2PT35KVG Pressure Relief Valve
Description
Parker RDM2PT35KVG Pressure Relief Valve
The Parker RDM2PT35KVG is a high-performance pressure relief valve belonging to the RDM series, meticulously engineered for industrial applications. With its exceptional performance and reliable quality, it offers stable and precise pressure control solutions for various industrial systems.
In terms of key parameters, the RDM2PT35KVG pressure relief valve demonstrates robust performance. It features a turning knob as the adjustment mechanism, allowing for convenient and flexible pressure regulation. The seal material is FPM, which ensures excellent sealing properties and chemical stability. The mounting type is a sandwich plate, enabling easy configuration within stack systems. Both the operation type and actuation type are direct and manual, guaranteeing straightforward and reliable operation. The valve port connection is NG06, and the gauge port is G1/4, making it compatible with a wide range of industrial equipment. Weighing only 1.3 kg, the product is lightweight, facilitating installation and maintenance. It has a maximum flow rate of 40 L/min, a maximum operating pressure of 350 bar, an operating temperature range from -20 °C to 60 °C, and a pressure control range from 5 to 350 bar, ensuring stable operation even in harsh industrial environments.
Regarding product function and principle, the RDM2PT35KVG is a direct-operated piston-type pressure relief valve. Pressure is relieved from port P to port T, and it exhibits low hysteresis, enabling precise pressure control. This direct-operated design ensures rapid response, allowing it to react promptly to changes in system pressure, effectively maintaining system pressure stability. It also reduces the risk of leakage, enhancing the accuracy and reliability of industrial production processes.
The RDM2PT35KVG is applicable in various industrial fields. Whether it is for pressure control in hydraulic systems of machinery manufacturing or pressure regulation in automated production lines, it plays a crucial role. It can be used as a P-T relief valve or a T-T controlled counterbalance valve, meeting the pressure control requirements of different industrial equipment and processes.
The RDM2PT35KVG offers numerous remarkable features and benefits. Firstly, it adopts a proven direct-operated, cushioned piston design, embodying Parker’s long-term experience in hydraulics and ensuring stable and reliable product performance. Secondly, its fast response, low leakage, and minimal hysteresis characteristics contribute to improving process and product accuracy, reducing production errors caused by pressure fluctuations. Thirdly, with 5 pressure adjustment stages, it can be precisely adapted to specific application scenarios, satisfying diverse industrial needs. Fourthly, most variations have a short delivery time, eliminating the need for extensive warehousing, which effectively reduces inventory costs for enterprises and improves supply chain efficiency. Finally, it is equipped with a gauge port, enabling real-time monitoring of system pressure. This allows users to promptly understand the equipment’s operating status and conduct maintenance and adjustments.
