Parker D1VW083BNJW Directional Control Valve

Description

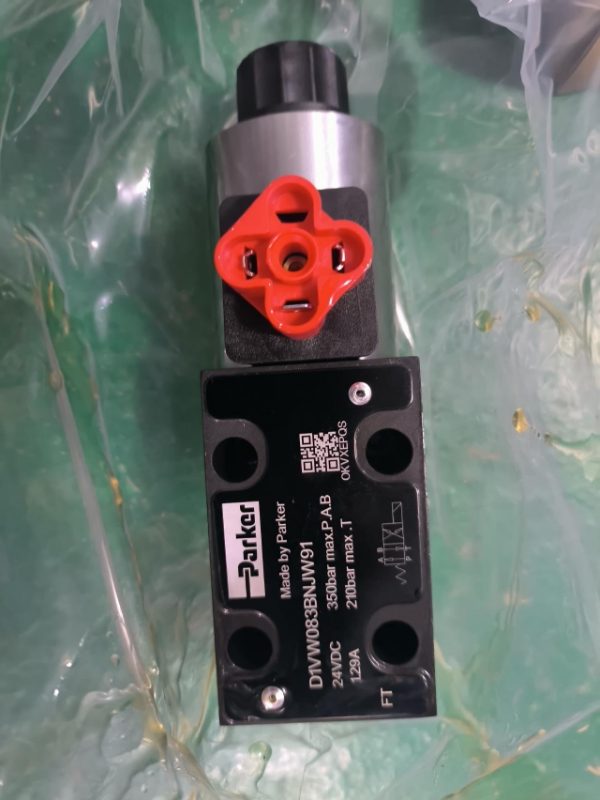

Parker D1VW083BNJW Directional Control Valve

The Parker D1VW083BNJW directional control valve belongs to the D1VW series. In the NG06 (CETOP 03) size, it is a high-performance direct-acting hydraulic on/off valve. It combines high functional capabilities with a remarkably low, energy – saving pressure drop. Its optimized flow path enables large – limit flow switching of up to 80 L/min under minimal pressure drop, which not only greatly improves the system operation efficiency but also effectively reduces energy consumption. The valve has 2 working positions. The spool is spring – offset in position b and is operated in position a through external actuation, allowing it to operate stably in various complex working conditions.
Technical Specifications
Seal Material: NBR (Nitrile Butadiene Rubber) is used as the seal material. This material has excellent oil resistance, abrasion resistance, and anti – aging properties. It can work stably for a long time in various media such as hydraulic oil, effectively preventing leakage and ensuring the valve’s sealing performance and reliability.
Operation Type and Actuation Method: The valve adopts a direct operation type and is actuated by an electromagnet. This actuation method features rapid response and precise control, meeting the requirements of various applications with high – precision control needs.
Electrical Parameter: The input voltage is 24 VDC, which can adapt to most industrial DC power supply systems, ensuring stable operation in different working environments.
Flow and Pressure: The maximum flow rate can reach 50 L/min, meeting the requirements of many medium – flow systems. Meanwhile, the maximum working pressure is as high as 350 bar, demonstrating excellent pressure – resistant capabilities, making it suitable for high – pressure and large – flow industrial applications.
Temperature Range: The valve can operate stably within the temperature range of – 25 °C to 60 °C, adapting to various harsh working environments. Whether in cold northern regions or hot industrial workshops, it can function reliably.
Connection Method: It uses a connector that complies with the EN 175301 – 803 standard, ensuring a safe and reliable connection with other devices, and facilitating installation and maintenance.
Installation and Weight: It adopts a subplate installation method, which is convenient for installation and has strong versatility. The entire valve weighs 1.5 kg, with a compact structure, making it easy to install in equipment with limited space
