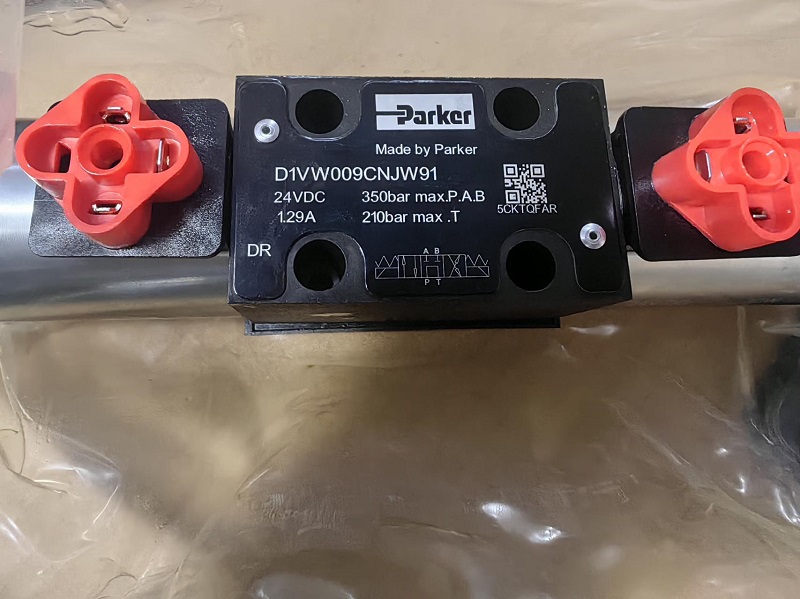

Parker D1VW009CNJW Directional Valve
Description
Parker D1VW009CNJW Directional Valve
The Parker D1VW009CNJW is a high-performance directional valve from the S Series, specifically engineered to meet the diverse needs of industrial hydraulic systems. Leveraging Parker’s profound expertise and advanced technology in hydraulics, this product offers reliable performance and flexible configurations, making it an excellent choice for hydraulic control in industrial automation and mechanical equipment.
In terms of technical specifications, the D1VW009CNJW demonstrates outstanding performance parameters. It operates on an input voltage of 24 VDC, ensuring compatibility with various DC power sources. The connection type complies with EN 175301-803 (connector) and ISO 9461 (code W for solenoid identification), guaranteeing seamless integration with a wide range of industrial equipment. The seals are made of NBR (Nitrile Butadiene Rubber), which provides excellent resistance to oils and chemicals, significantly extending the product’s service life. The spool features a C-type three-position design, with a spring offset at position 0 and operable at position a or b, enabling precise control over the direction of hydraulic fluid flow.
With a size conforming to DIN NG06 / CETOP 03 / NFPA D03 standards and an interface type compatible with DIN 24340 A6 / ISO 4401 / CETOP RP 121-H / NFPA D03, the valve can be effortlessly integrated into existing hydraulic systems. Weighing 2.1 kg, it boasts a compact yet robust structure. The maximum operating pressure reaches 350 bar at ports P, A, B, and 210 bar at port T, while the maximum flow rate can reach up to 80 L/min (depending on the spool type; refer to shift limits), ensuring efficient handling of high-flow hydraulic fluids. Actuated by a solenoid and equipped with a standard manual override function, it ensures continuous system operation even in the event of electrical failures. With an ingress protection rating of IP65 (when the plug-in connector is properly installed), it can withstand harsh industrial environments such as those with high humidity and dust. Its operating temperature range spans from -25°C to 60°C, and the valve body, constructed from gray iron, combines high strength and durability.
Functionally and in application, the D1VW009CNJW, through its optimized flow passage design, maintains an extremely low pressure drop even when controlling high flow rates of up to 80 l/min, effectively reducing energy consumption and enhancing system operational efficiency. Its extensive variety of spool types and configuration options enable it to be widely applied in various industrial scenarios, including machinery manufacturing, construction equipment, and automated production lines, catering to the design requirements of different hydraulic circuits. Additionally, the optional soft shift function, which slows down the switching time via an additional orifice in the solenoid anchor, ensures smooth operation of the hydraulic system, minimizing mechanical shock and noise.
The Parker D1VW009CNJW offers several notable advantages. Firstly, its compact and proven design reflects Parker’s long-standing experience in hydraulics, ensuring stable and reliable product performance. Secondly, the extensive selection of spools allows for highly flexible customized solutions that fit all hydraulic systems. Thirdly, with a short lead time, it eliminates the need for extensive warehousing, helping enterprises reduce inventory costs and improve supply chain responsiveness. Fourthly, the standard manual override function and the optional soft shift function strike a balance between safety and smooth operation, providing a reliable guarantee for industrial production.
