Parker D1VW002KNJW Directional Control Valve
Description

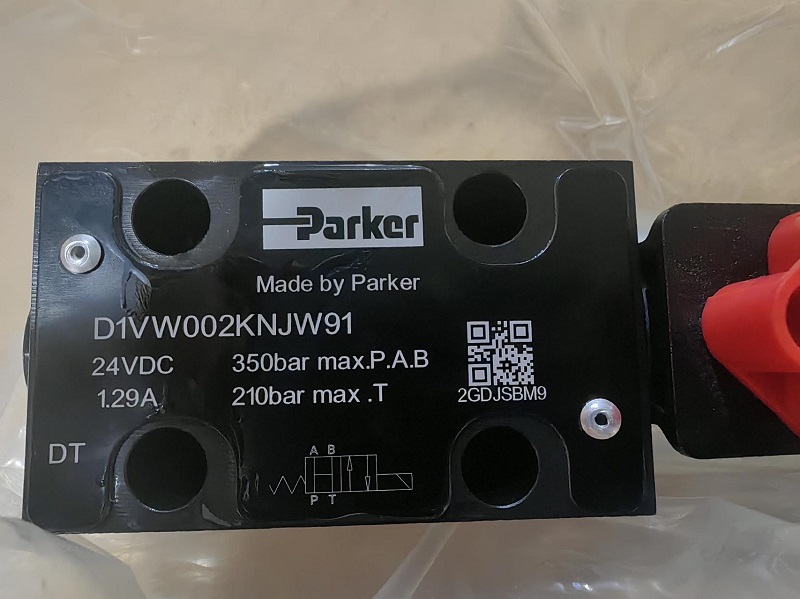

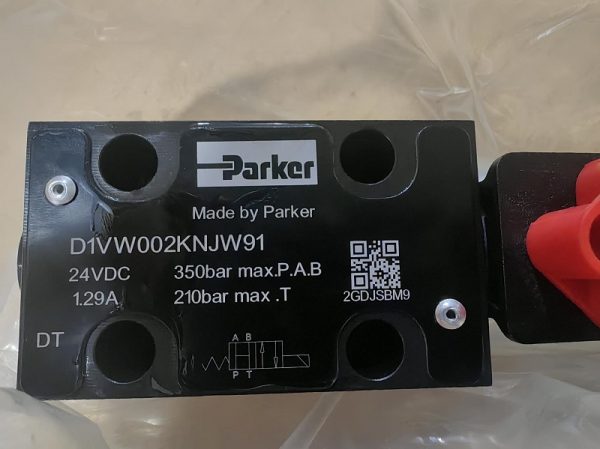

Parker D1VW002KNJW Directional Control Valve
The Parker D1VW002KNJW is a high-performance directional control valve belonging to the D1VW series, meticulously designed to meet the complex and diverse hydraulic control requirements in the industrial field. With its advanced design concepts, reliable performance, and rich functional configurations, it stands as an ideal choice for achieving precise fluid control in industrial hydraulic systems.
Core Technical Specifications
The Parker D1VW002KNJW excels in technical specifications. It features a standard marking and utilizes Nitrile Butadiene Rubber (NBR) and Fluorocarbon Rubber (FPM) as seal materials, effectively resisting erosion from various media and ensuring long-term stable sealing performance. The operation type is direct, and the spool has two positions, with a spring offset at position 0 and operability at position b. Actuated by a solenoid, it operates on an input voltage of 24 VDC, making it compatible with a wide range of DC power sources. The connection type complies with the EN 175301-803 standard (connector), and the port connection adopts the NG06 / CETOP 03 specification, enabling seamless integration with various hydraulic equipment. Installed via a subplate, its mounting position is unrestricted (horizontal installation is preferred). With a maximum flow rate of 80 L/min and a maximum operating pressure of 350 bar, it can meet the fluid transmission demands of high-load working conditions. Its operating temperature range spans from -20°C to 60°C, suitable for various complex environments. The valve body, made of cast iron and weighing 1.5 kg, combines sturdiness and compactness, ensuring structural strength while saving installation space.
Function and Principle
This valve has a three-way structure. Through its optimized flow passage design, it maintains an extremely low pressure drop even when controlling high flow rates of up to 80 l/min, effectively reducing energy consumption and enhancing system operational efficiency. The solenoid actuation, combined with the unique spool design, enables precise control of the hydraulic fluid flow direction, achieving accurate manipulation of the actuators. Additionally, it offers optional features such as the soft shift function. An extra orifice in the solenoid anchor slows down the switching time, reducing hydraulic shock and ensuring smooth system operation. The manual override function is also available, ensuring the system can still operate normally in case of electrical failures, providing dual guarantees for equipment operation.
Application Areas
The Parker D1VW002KNJW is widely applicable in various industrial scenarios. In the field of machinery manufacturing, it can be used in machine tools, automated production lines, etc., to achieve precise control over the movement of mechanical components. In the automotive manufacturing industry, it supports the stable operation of hydraulic systems in stamping, welding, and other processes. In the rubber and plastic processing industry, it meets the fluid control requirements of injection molding machines, calenders, and other equipment. Moreover, in construction machinery, mining equipment, and other fields, its reliable performance ensures the efficient operation of equipment under harsh working conditions.
Product Advantages
Mature Design, Reliable Quality: Adopting a compact and field-proven design, it embodies Parker’s long-term experience in hydraulics, ensuring stable product performance and a long service life.
High Adaptability, Versatility: With a wide variety of spool types and configuration options, it can adapt to all kinds of hydraulic systems, whether simple basic circuits or complex multi-stage control systems.
Efficient Response, Energy Saving: Its fast response speed, combined with the low-pressure drop design, improves system efficiency while effectively reducing energy consumption, helping enterprises save operating costs.
Rapid Delivery, Cost Reduction: Most variants have an extremely short lead time, eliminating the need for extensive warehousing, significantly reducing inventory costs and capital occupation, and enhancing the efficiency of the supply chain.
Multiple Options, Customizable Solutions: Offering various optional configurations such as soft shift, manual override, and explosion-proof versions, it can provide personalized solutions according to different application scenarios and customer needs, fully meeting diverse industrial requirements.
The Parker D1VW002KNJW directional control valve, with its outstanding performance, flexible configurations, and reliable quality, provides a solid guarantee for the stable operation and efficient control of industrial hydraulic systems. If you are interested in specific product parameters, customization solutions, or application cases, please feel free to contact us for more information.
