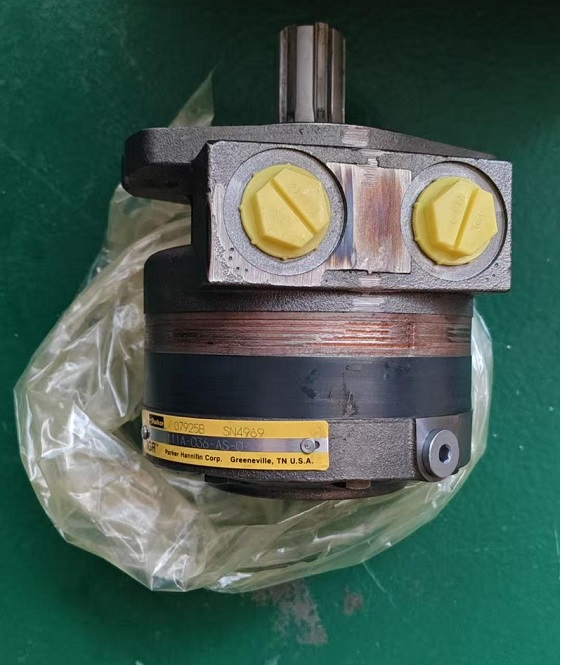

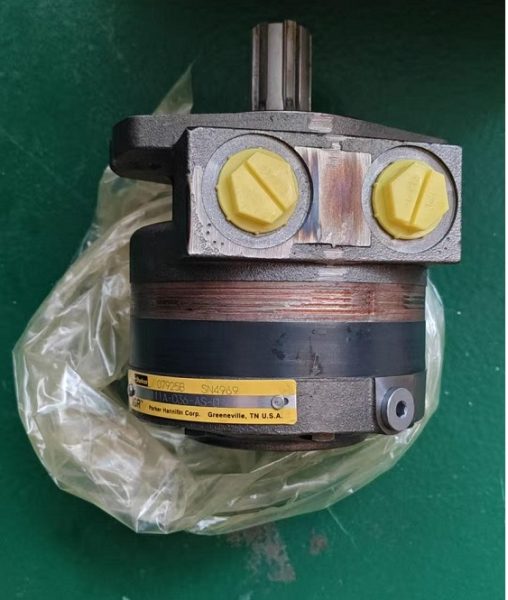

Parker 111A-036-AS-0 Motor
Overview
The Parker 111A-036-AS-0 Motor is a high-performance, compact Low Speed High Torque (LSHT) orbital motor, engineered to deliver robust power in space-constrained industrial applications. Inspired by the Nichols™ 110A Series design philosophy, this motor combines durability, precision, and flexibility, making it ideal for demanding environments that require reliable low-speed torque.
Technical Specifications
Displacement: 59 to 395 cm³/rev (3.6 to 24.1 inch³/rev)
Maximum Pressure Differential:Intermittent: 155 to 210 bar (up to 3000 psi)
Continuous: 120 to 170 bar
Maximum Flow Rate:Intermittent: 53 to 114 L/min (up to 30 gal/min)
Continuous: 45 to 76 L/min
Maximum Output Torque:Intermittent: 149 to 764 Nm (up to 6765 lb-inch)
Continuous: 127 to 595 Nm
Maximum Operating Speed: Up to 858 RPM
Shaft Diameter: 1.00 inch
Key Features
Compact & Rugged Design
Built with a space-efficient structure, the motor offers high torque density, similar to the Nichols™ 110A Series. Its compact form factor (e.g., potentially delivering 7200 lb-in of torque in just 6.6 inches of length) enables easy integration into machinery with limited installation space.
Long-Life Performance
Features a unique solid, one-piece shaft design (mirroring the Nichols™ 110A Series) that eliminates traditional torque links, reducing internal spline stress and enhancing resistance to rapid reversals. This design significantly extends motor lifespan, making it suitable for heavy-duty industrial applications.
High Power Density
Delivers exceptional power output relative to its size, ensuring reliable performance in tasks requiring both precision and brute force, such as heavy lifting or continuous operation under load.
Flexible Mounting Options
Equipped with a thru-shaft design, allowing seamless integration of brakes, encoders, or auxiliary drives. The extendable shaft through the rear cover supports versatile mounting configurations for customized motion control setups.
Applications
Aerial Equipment: Ground support systems, aerial work platforms, and aircraft maintenance tools.
Agriculture Machinery: Tractors, harvesters, and irrigation systems requiring low-speed, high-torque drives.
Construction Equipment: Mini-excavators, loaders, and concrete mixers for hydraulic power transmission.
Factory Automation: Robotics, conveyor systems, and assembly line machinery for precise motion control.
Material Handling Equipment: Forklifts, pallet jacks, and warehouse automation systems.
Oil & Gas: Downhole tools, pumps, and valves in onshore/offshore applications.
Food & Beverage: Sanitary-driven systems in processing, packaging, and bottling lines.
Vocational & Municipal Equipment: Garbage trucks, street sweepers, and emergency vehicle hydraulics.
Performance & Reliability
The Parker 111A-036-AS-0 Motor is designed to excel in harsh conditions, combining robust materials with innovative engineering. Its ability to withstand high pressures, rapid direction changes, and continuous use makes it a trusted choice for industries where durability and performance are non-negotiable. Whether used in mobile machinery or fixed industrial setups, this motor ensures efficient power delivery and minimal downtime, optimizing operational productivity.
